Description

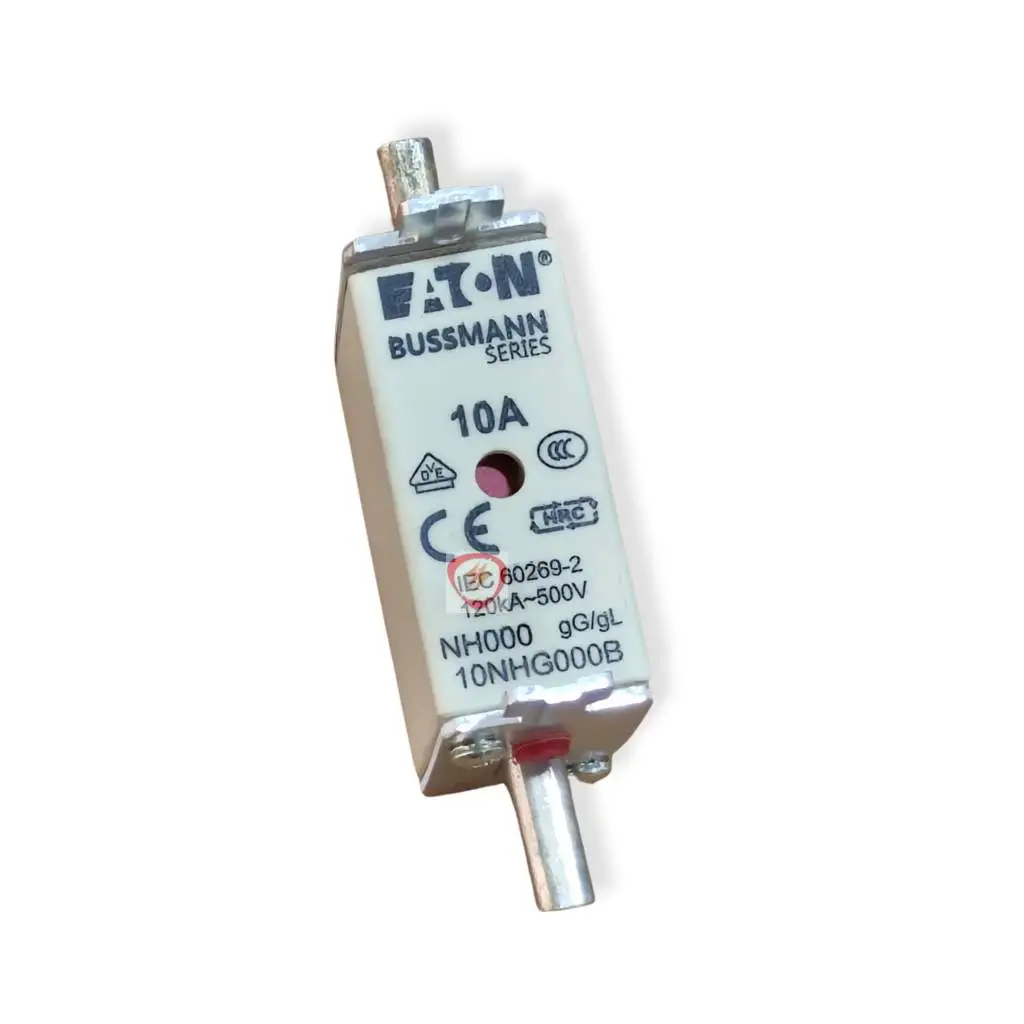

The Eaton Bussmann 10NHG000B is a 10A rated, NH size 000, Low-Voltage DIN-Type NH Dual Fuse Link classified as gL-gG under IEC 60269 and DIN EN 60269 standards. The dual fuse element design delivers reliable full-range overcurrent protection, making it suitable for both overload and short-circuit conditions in low-voltage electrical systems. Its compact NH000 form factor fits standard DIN-type fuse bases and switch-disconnectors used widely across industrial and commercial installations.
The 10NHG000B is engineered for demanding applications including low-voltage switchgear panels, distribution boards, motor control centres, and motor feeder circuits. It provides effective cable protection against sustained overloads and prospective fault currents, helping safeguard downstream equipment, wiring systems, and personnel in both industrial plants and commercial buildings. Its versatility makes it a preferred choice for panel builders and electrical contractors handling a wide range of LV distribution projects.
As a DIN-type NH fuse link, the 10NHG000B offers a high breaking capacity to safely interrupt fault currents typical of low-voltage networks. The dual fuse element construction enhances arc quenching performance and current-limiting capability, minimising let-through energy during fault conditions. Full compliance with IEC 60269 and DIN EN 60269 ensures interoperability with standard NH000 fuse holders and switch-disconnectors from leading switchgear manufacturers, simplifying panel design and maintenance procedures.
Eaton Bussmann is a globally recognised leader in circuit protection, trusted by OEMs, panel builders, and electrical contractors across more than 100 countries. Their NH fuse link range is manufactured to stringent quality standards, delivering consistent performance, long service life, and dependable protection in critical power distribution environments. Choosing Eaton Bussmann products means investing in proven technology backed by decades of engineering expertise and worldwide application support.
To purchase the Eaton Bussmann 10NHG000B in Coimbatore or anywhere across India, contact Shansen Enterprises, an authorized Eaton Bussmann distributor based in Coimbatore. Reach us via WhatsApp or email for competitive pricing, real-time stock availability, and attractive discounts on bulk and project orders. Our team is ready to assist with product selection, technical queries, and fast order fulfilment.
What does NH size 000 mean in fuse 10NHG000B?
NH size 000 refers to the physical dimension standard of the DIN-type fuse link. Size 000 determines the blade contact dimensions and the current rating range the fuse can handle safely, and it must be matched with a compatible NH000 fuse base or switch-disconnector for correct installation.
What does class gL-gG mean?
Class gL-gG is a general purpose fuse class per IEC 60269 that provides full-range overcurrent protection for both cables and general loads including motors and transformers in low voltage installations. The designation indicates the fuse is capable of interrupting all overcurrents from the minimum fusing current up to the maximum rated breaking capacity.
What are the typical applications for the 10NHG000B?
The 10NHG000B 10A NH fuse link is used in low voltage switchgear panels, distribution boards, motor control centres, and cable feeder protection in industrial and commercial electrical installations. It is also suitable for transformer secondary protection and branch circuit protection in LV distribution systems.
Is the 10NHG000B compliant with IEC and DIN standards?
Yes, the Eaton Bussmann 10NHG000B is fully compliant with both IEC 60269 and DIN EN 60269 standards for low-voltage fuse links. This ensures it meets internationally recognised requirements for performance, safety, and interoperability with standard NH000 fuse holders available from major switchgear manufacturers.
How can I order the Eaton Bussmann 10NHG000B in Coimbatore?
Contact Shansen Enterprises, an authorized Eaton Bussmann channel partner in Coimbatore, via WhatsApp or email for pricing, stock availability and bulk order discounts. Our team can also assist with related fuse accessories, fuse bases, and other Eaton Bussmann circuit protection products.
