Description

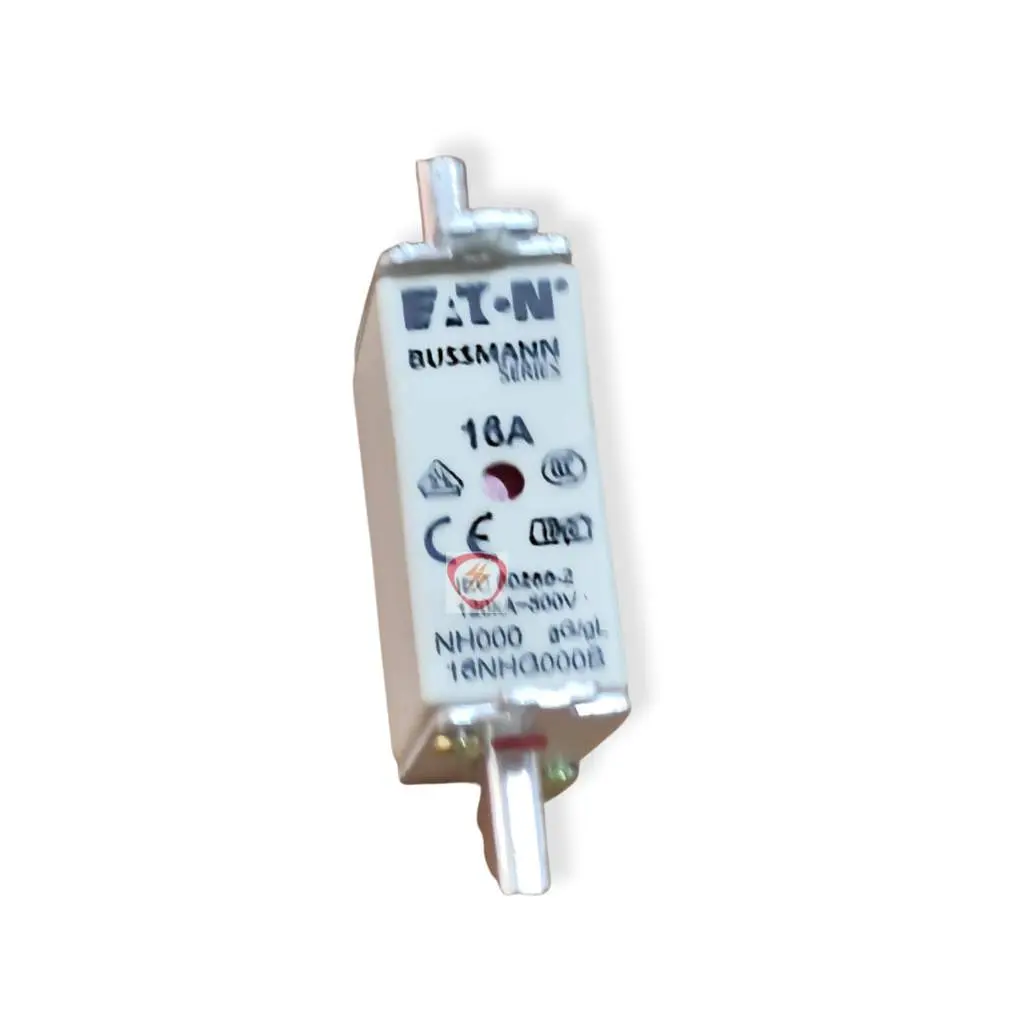

The Eaton Bussmann 16NHG000B is a 16A rated, NH size 000, Low-Voltage DIN-Type NH Dual Fuse Link designed for full-range overcurrent protection in class gL-gG applications. Built to meet DIN EN 60269 and IEC 60269 international standards, this fuse link combines precision engineering with high reliability, making it a trusted choice for protecting electrical circuits in low-voltage power distribution systems. Its NH size 000 form factor ensures compatibility with standard DIN-type NH fuse bases and switch-disconnectors rated for the 000 blade contact dimension.
The 16NHG000B is ideally suited for a wide range of low-voltage electrical installations including LV switchgear panels, main and sub distribution boards, motor control centres (MCCs), motor feeder circuits, transformer secondary protection, and cable feeder protection in both industrial plants and commercial buildings. Its 16A current rating makes it particularly well suited for protecting smaller branch circuits and sensitive equipment within larger power distribution assemblies.
As a DIN-Type NH Dual Fuse Link, the 16NHG000B incorporates a dual fuse element design that provides enhanced protection performance and consistent current-time characteristics. Its high breaking capacity ensures safe interruption of fault currents without risk of arc flash or damage to connected equipment. The gL-gG classification confirms full-range overcurrent protection capability, covering both overload and short-circuit conditions for line and general load protection in accordance with IEC 60269 and DIN EN 60269 standards.
Eaton Bussmann is a globally recognized leader in circuit protection solutions, trusted by OEMs, panel builders, electrical contractors, and industrial end users across more than 175 countries. Their NH fuse links are engineered for long service life, dimensional accuracy, and consistent performance under demanding electrical and thermal conditions, ensuring that critical infrastructure remains protected and downtime is minimized.
Contact Shansen Enterprises in Coimbatore, an authorized Eaton Bussmann distributor, to request pricing, check stock availability, or place bulk orders for the 16NHG000B and other Eaton Bussmann products. Reach us via WhatsApp or email through our contact page at shansenenterprises.com and our team will respond promptly with a competitive quote.
Frequently Asked Questions
What does NH size 000 mean in fuse 16NHG000B?
NH size 000 refers to the standardized physical dimension class of the DIN-type NH fuse link. The size 000 designation defines the blade contact dimensions, the overall fuse body dimensions, and the permissible current rating range, ensuring interchangeability and safe fitment within compatible NH size 000 fuse bases, switch-disconnectors, and withdrawable fuse carriers.
What does class gL-gG mean for the 16NHG000B?
Class gL-gG is a general purpose fuse utilization category defined under IEC 60269 and DIN EN 60269. The designation indicates that the fuse provides full-range overcurrent protection, capable of safely breaking any overcurrent from the minimum fusing current up to the rated breaking capacity. It is suitable for protecting cables, conductors, and general electrical loads including motors, transformers, and distribution circuits in low-voltage systems.
What are the typical applications for the Eaton Bussmann 16NHG000B?
The 16NHG000B 16A NH000 fuse link is used in low-voltage switchgear and controlgear assemblies, main and sub distribution boards, motor control centres, motor feeder protection, transformer secondary protection, and cable circuit protection in industrial manufacturing plants, commercial buildings, data centres, and infrastructure projects.
Is the 16NHG000B compliant with IEC and DIN standards?
Yes, the Eaton Bussmann 16NHG000B is fully compliant with IEC 60269 and DIN EN 60269, the internationally recognized standards for low-voltage fuses. This ensures reliable performance, dimensional interchangeability with other compliant NH000 fuse system components, and acceptance in projects requiring certified protection devices.
What is a Dual Fuse Link and what advantage does it offer?
A Dual Fuse Link incorporates two fuse elements within a single fuse body. This design provides improved current-time characteristics, greater consistency in overcurrent protection performance, and enhanced reliability compared to single-element fuse links, making it suitable for demanding industrial and commercial low-voltage protection applications.
How can I order the Eaton Bussmann 16NHG000B in Coimbatore or anywhere in India?
Contact Shansen Enterprises, an authorized Eaton Bussmann channel partner based in Coimbatore, via WhatsApp or email for competitive pricing, real-time stock availability, and bulk order discounts on the 16NHG000B and the full range of Eaton Bussmann fuse products. Visit shansenenterprises.com to get in touch with our sales team.
