Description
Overview

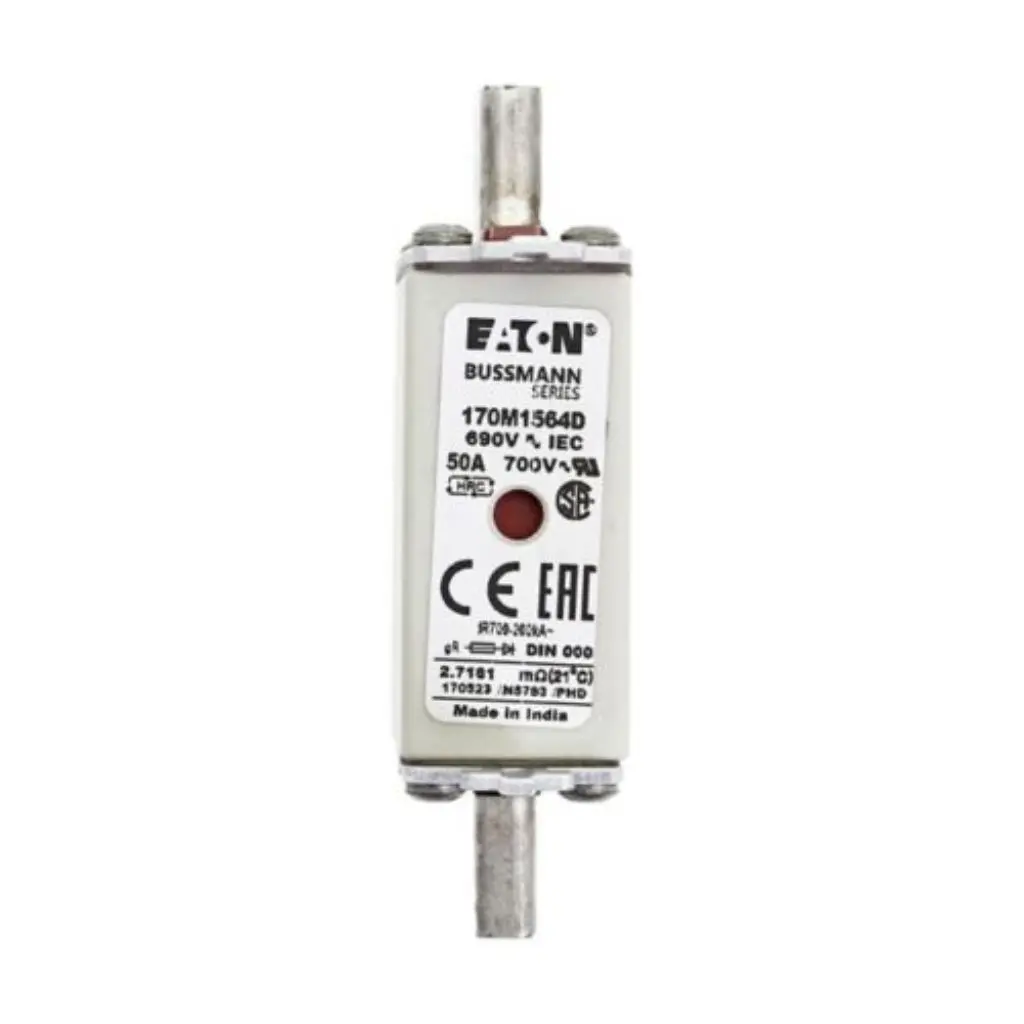

The Eaton Bussmann 170M1564D is a high speed square body semiconductor protection fuse from the renowned 170M Series, rated 50 A at 690 V AC with a 200 kA interrupt rating to IEC 60269-4. Constructed in DIN 43620 DIN 000 format with knife blade contacts, it is engineered specifically to protect sensitive power semiconductor devices from destructive overcurrent events. Its dual fuse indicator (Type D) enables rapid visual and auxiliary fault detection, making it a dependable choice for demanding industrial power electronics installations throughout India.
Key Features
- 50 A, 690 V AC Class gR Rating — optimized current limiting for semiconductor device protection in high-voltage AC systems
- 200 kA Breaking Capacity — handles extreme fault currents, safeguarding expensive power electronics from damage
- DIN 43620 DIN 000 Format — standardized square body construction ensures compatibility with a wide range of DIN-spec fuse holders and busbars
- Knife Blade Contacts — provide low-resistance, secure connections suited for high current industrial environments
- Dual Fuse Indicator (Type D) — simultaneous visual and microswitch-compatible blown indicator for fast fault diagnosis and panel monitoring integration
- Class gR Performance — full range current limiting action specifically designed for semiconductor protection, not general-purpose fuses
- IEC 60269-4 Compliant — internationally recognized standard assures design integrity for export and domestic installations alike
- CE Marked and RoHS Compliant — meets European safety directives and restricts hazardous substances, supporting green manufacturing requirements
- IEC Certified — third-party verified performance gives engineers and panel builders confidence in type-tested ratings
Technical Specifications
| Specification | Value |
|---|---|
| Catalog Number | 170M1564D |
| Series | Bussmann 170M |
| Amperage Rating | 50 A |
| Rated Voltage AC | 690 V |
| Fuse Class | Class gR |
| Fuse Type | High Speed Square Body |
| Breaking Capacity | 200 kA |
| Interrupt Rating | 200 kA |
| Construction / Format | DIN 43620 DIN 000 format, knife blade contacts |
| Fuse Indicator | Dual Indicator (Type D) |
| Standard | IEC 60269-4 |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | IEC Rated |
| Application | Semiconductor protection, DC common bus, DC drives, power converters, rectifiers, VFDs, soft starters, thyristor stacks |
Applications & Selection Guide
The 170M1564D is purpose-built for semiconductor protection duty in industrial power electronics. Its Class gR designation means it is rated to protect rectifier diodes, SCRs, IGBTs, and thyristor assemblies where the fuse must clear faults faster than the semiconductor’s own I²t withstand limit. Typical installations include DC common bus architectures, variable frequency drives (VFDs), soft starter input and output circuits, industrial rectifiers, and power converter modules operating on 690 V AC systems.
In India’s rapidly expanding manufacturing, metals, cement, textile, and process industries, 690 V drive systems are increasingly common, and the correct selection of a Class gR high speed fuse is critical — a standard gG fuse will not provide adequate semiconductor protection. The 170M1564D at 50 A suits smaller drive modules and converter sub-circuits within larger multi-drive panels, where space-efficient DIN 000 square body housings are already specified.
When selecting this fuse, always verify the semiconductor manufacturer’s recommended I²t and peak let-through current ratings against the 170M1564D datasheet values to confirm coordination. Shansen Enterprises can assist panel builders and OEMs across Coimbatore, Chennai, Pune, Ahmedabad, and across India with application-level selection support via WhatsApp or email.
Why Buy from Shansen Enterprises?
- Authorized Eaton Channel Partner in Coimbatore — genuine product sourced directly through official Eaton supply chain
- 100% genuine products supplied with manufacturer warranty and traceability
- Pan-India delivery to all major industrial cities and tier-2 locations
- WhatsApp technical support for application selection, cross-reference, and documentation
- Bulk pricing and priority availability for panel builders, OEMs, and EPC contractors
Compatible Products & Accessories
- Eaton Bussmann 170M Series DIN 000 square body fuse holders and fuse bases
- Eaton Bussmann 170M Series knife blade contact fuse carriers
- Auxiliary microswitch fuse monitoring modules compatible with Type D indicators
- DIN 43620 busbar-mount fuse blocks for 690 V switchgear panels
- Eaton Bussmann 170M Series complementary amperage ratings (e.g., 170M1562D, 170M1565D) for multi-drive panel coordination
- Eaton surge protective devices and DC bus capacitors for complete drive protection assemblies
Frequently Asked Questions
What does Class gR mean and why does it matter for semiconductor protection?
Class gR fuses are full-range current-limiting fuses specifically designed to protect semiconductor devices such as diodes, thyristors, SCRs, and IGBTs. Unlike Class gG general-purpose fuses, Class gR fuses have a much lower I²t let-through energy, enabling them to clear fault currents before the semiconductor junction is damaged. Using a standard gG fuse in place of a gR fuse in a drive or converter circuit is a common and costly mistake — it will not provide adequate semiconductor protection.
What is the voltage rating of the 170M1564D and can it be used on a 415 V AC system?
The 170M1564D is rated at 690 V AC, which means it can be used on any AC system up to and including 690 V — so yes, it is fully suitable for 415 V AC systems commonly found in Indian industrial installations. Using a higher-rated voltage fuse on a lower voltage system is electrically acceptable and does not affect protection performance.
What is the significance of the Dual Indicator (Type D) on this fuse?
The Type D dual fuse indicator on the 170M1564D provides two simultaneous blown-fuse signals: a visual pop-up flag for technician inspection during panel maintenance, and an electrical contact output that can interface with a PLC, alarm relay, or SCADA system for remote fault monitoring. This is particularly valuable in unattended or remotely monitored drive panels where early fault detection reduces downtime.
Is the 170M1564D suitable for DC bus protection in VFD and drive systems?
Yes. The 170M1564D is explicitly rated for DC common bus and DC drive applications. Its high speed current-limiting design ensures that DC fault currents — which lack a natural zero crossing unlike AC — are interrupted rapidly enough to protect the semiconductor devices on the DC bus. Always confirm DC voltage rating from the product datasheet and Eaton application notes for your specific DC bus voltage before installation.
What certifications and compliance markings does the 170M1564D carry?
The Eaton Bussmann 170M1564D is IEC Rated per IEC 60269-4, CE Marked for European conformity, and RoHS Compliant confirming restriction of hazardous substances. These certifications make it suitable for use in both Indian domestic industrial projects and export-oriented machinery and panel builds requiring international compliance documentation.
