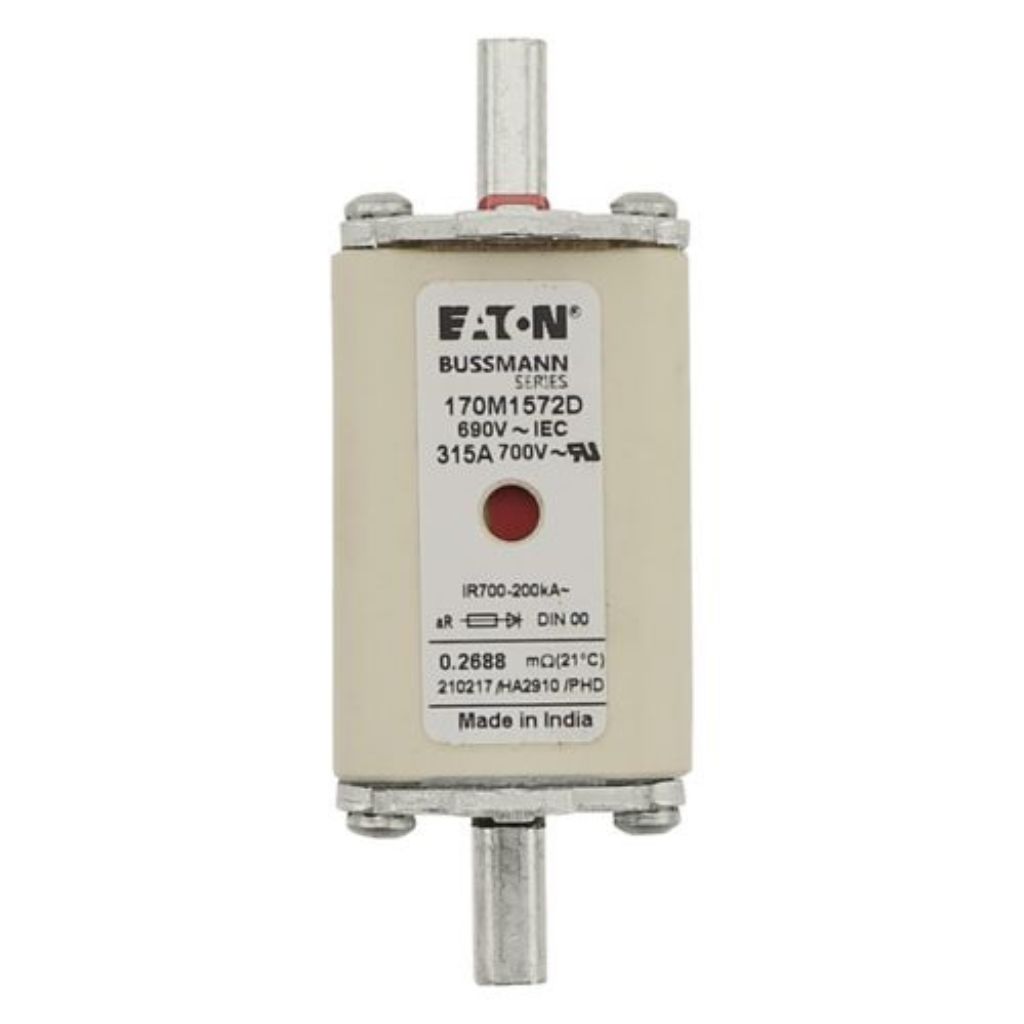

The Eaton Bussmann 170M1572D is a high speed square body semiconductor fuse rated 315 A at 690 V AC, engineered to protect semiconductor devices from destructive overcurrent faults within microseconds. Part of the globally trusted Bussmann 170M Series, this fuse conforms to IEC 60269-4 and the DIN 43620 DIN 00 mechanical format, making it a direct-fit replacement or new-build component for a wide range of industrial power electronic assemblies. Its 200 kA interrupt rating and Class aR classification make it the benchmark choice for semiconductor protection in Indian manufacturing and process industries.
Key Features
- 315 A Amperage Rating — covers mid-range semiconductor protection requirements in drives and converter systems
- 690 V AC Voltage Rating — suitable for standard 3-phase industrial supply networks across India
- 200 kA Breaking Capacity — high interrupt rating ensures safe operation even under severe fault conditions
- Class aR Classification — ultra-fast acting current-limiting performance specifically designed for semiconductor device protection
- DIN 43620 DIN 00 Format with Knife Blade Contacts — standardized square body construction for reliable mechanical and electrical interface in panel assemblies
- Dual Indicator Type D — two visible blown fuse indicators simplify fault detection and reduce panel downtime
- IEC 60269-4 Compliant — internationally recognized standard ensures consistent and verifiable performance
- CE Marked and RoHS Compliant — meets European safety and environmental directives, suitable for export-oriented equipment manufacturers
- Bussmann 170M Series — field-proven design with global installed base and broad panel builder acceptance
Technical Specifications
| Specification | Value |
|---|---|
| Catalog Number | 170M1572D |
| Series | Bussmann 170M |
| Amperage Rating | 315 A |
| Rated Voltage AC | 690 V |
| Interrupt Rating | 200 kA |
| Breaking Capacity | 200 kA |
| Fuse Class | Class aR |
| Construction | DIN 43620 DIN 00 format with knife blade contacts |
| Fuse Indicator | Dual Indicator (Type D) |
| Standard | IEC 60269-4 |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | IEC Rated |
| Application | Semiconductor protection, DC common bus, DC drives, power converters, rectifiers, VFDs, soft starters, thyristor stacks |
Applications & Selection Guide
The 170M1572D is the preferred semiconductor protection fuse for power electronic equipment operating at 315 A on 690 V AC industrial networks. Its Class aR rating means it is optimized exclusively for semiconductor protection — it will clear fault currents before the I²t withstand limit of the protected device is exceeded, a performance characteristic that standard gG or gR fuses cannot reliably deliver at these current levels. This makes it mandatory in designs where IGBT modules, thyristor bridges, diode rectifiers, or SCR stacks are used.
Typical Indian industry applications include steel and aluminum rolling mills, cement plant drives, textile machinery VFD panels, chemical process rectifiers, induction furnace power supplies, and traction converter assemblies. Panel builders and OEMs working on export-grade switchgear or drives cabinets will also find this product meets CE marking requirements out of the box. The DIN 00 knife blade format integrates directly with standard DIN 43620-compatible fuse holders and bus bar mounting systems widely used in Indian MCC and PCC panels.
When selecting the correct 170M Series fuse, match the fuse amperage to the semiconductor device’s rated RMS current and verify that the fuse I²t (let-through energy) is below the device’s rated I²t withstand. Eaton’s fuse selection software and application engineering support — accessible through Shansen Enterprises — can assist with this calculation for complex multi-drive or converter topologies common in Coimbatore’s manufacturing base and across Indian industry.
Why Buy from Shansen Enterprises?
- Authorized Eaton Channel Partner in Coimbatore — genuine products backed by Eaton’s supply chain
- 100% genuine products supplied with manufacturer warranty and traceability
- Pan-India delivery with reliable logistics to all major industrial hubs
- WhatsApp technical support for fuse selection, cross-referencing, and application queries
- Bulk and project pricing available for panel builders, OEMs, and EPC contractors
Compatible Products & Accessories
- DIN 43620 DIN 00 compatible fuse holders and bases for knife blade contact fuses
- Eaton Bussmann 170M Series fuses in adjacent current ratings (250 A, 355 A, 400 A) for coordinated protection
- Eaton semiconductor fuse monitoring relay modules for remote blown-fuse signaling
- Eaton Bussmann fuse puller and handling tools for safe DIN 00 fuse replacement
- Copper bus bar adaptors and DIN rail mounting kits for 170M Series square body fuses
- Eaton variable frequency drives (PowerXL series) requiring coordinated upstream fuse protection
Frequently Asked Questions
What does Class aR mean for the Eaton Bussmann 170M1572D?
Class aR is an IEC 60269-4 designation for fuses designed exclusively for semiconductor device protection. Unlike Class gG fuses that protect cables across the full overload and short-circuit range, Class aR fuses are optimized to clear only high-magnitude short-circuit currents extremely fast — within microseconds — to keep the let-through energy (I²t) below the withstand rating of IGBT modules, thyristors, SCRs, and diodes. The 170M1572D should always be used in conjunction with a suitable upstream overcurrent protective device for overload protection of the circuit.
Is the 170M1572D suitable for DC bus and DC drive applications?
Yes. The Eaton Bussmann 170M1572D is specifically listed for DC common bus and DC drive applications. When used on DC circuits, the applicable voltage rating must be confirmed against the DC voltage of the circuit — consult the Eaton Bussmann 170M Series datasheet or contact Shansen Enterprises for DC application guidance to ensure correct derating is applied.
What is the significance of the Dual Indicator Type D on this fuse?
The Dual Indicator (Type D) means the 170M1572D is fitted with two striker or visual indication pins, one on each end of the fuse body. When the fuse operates (blows), both indicators are released simultaneously, providing a clear and unmistakable visual signal from either side of the panel. This speeds up fault diagnosis and reduces the time technicians spend locating a blown fuse in multi-fuse assemblies such as DC bus panels or converter racks — a significant advantage in minimizing production downtime in industrial plants.
Which fuse holder or base is compatible with the 170M1572D?
The 170M1572D is built to the DIN 43620 DIN 00 format with knife blade contacts. It is compatible with DIN 43620-compliant fuse holders designed for the DIN 00 size — these are widely available from Eaton and other manufacturers. The knife blade contacts must match the blade dimensions specified in DIN 43620. Shansen Enterprises can supply compatible fuse holders and mounting hardware alongside the fuse to ensure a complete, verified assembly.
Does the 170M1572D carry CE marking and RoHS compliance?
Yes. The Eaton Bussmann 170M1572D is CE Marked and RoHS Compliant, confirming it meets applicable European Union directives for low voltage electrical equipment and restriction of hazardous substances. These certifications are important for OEMs and panel builders in India who manufacture equipment for export to European markets or for multinational end-users who require CE-compliant Bill of Materials on their drives and converter panels.
How do I order the Eaton Bussmann 170M1572D from Shansen Enterprises?
You can request a quote for the Eaton Bussmann 170M1572D directly from Shansen Enterprises via WhatsApp or email using the contact buttons on this page. Please share your required quantity, delivery location, and any project-specific requirements such as test reports or bulk packaging. Shansen Enterprises is an authorized Eaton channel partner based in Coimbatore and supplies genuine Eaton Bussmann products with pan-India delivery. Our team will respond promptly with pricing, availability, and lead time.
