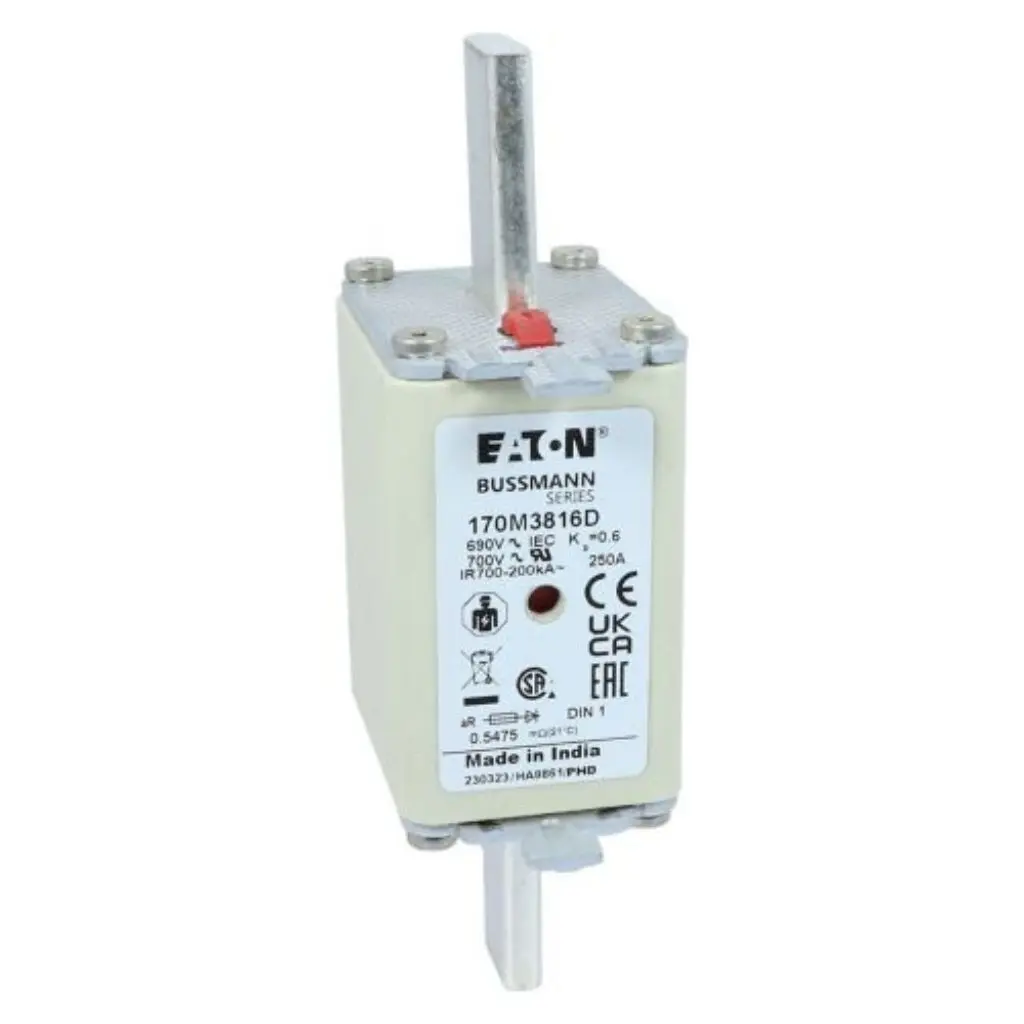

The Eaton Bussmann 170M3816D is a high speed square body semiconductor fuse rated 250 A at 690 V AC, designed for the protection of power semiconductors including thyristors, diodes, IGBTs, and SCRs in high-demand industrial applications. Part of the proven Bussmann 170M Series, this fuse conforms to DIN 43620 DIN 1 format with knife blade contacts, ensuring drop-in compatibility with standard semiconductor fuse holders and bus bar mounting systems. Its Class aR rating and 200 kA breaking capacity make it the correct choice wherever fast, reliable semiconductor fault clearing is required.
Key Features
- 250 A Current Rating — handles continuous load currents up to 250 A in semiconductor converter circuits
- 690 V AC Rated Voltage — suitable for standard industrial power distribution voltages across Indian manufacturing plants
- 200 kA Interrupt Rating — high breaking capacity ensures safe fault clearing under worst-case short-circuit conditions
- Class aR Fuse — purpose-built for semiconductor protection with ultra-fast current limiting characteristics
- DIN 43620 DIN 1 Format, Knife Blade Contacts — industry-standard square body construction for direct replacement compatibility
- Dual Fuse Indicator (Type D) — provides visual blown-fuse indication from two sides, simplifying maintenance inspection
- IEC 60269-4 Compliant — meets international standard for high speed fuses used in semiconductor protection
- CE Marked and RoHS Compliant — meets European directives for industrial equipment and hazardous substance restrictions
- IEC Rated — independently certified for quality assurance in critical power electronics applications
Technical Specifications
| Specification | Value |
|---|---|
| Catalog Number | 170M3816D |
| Series | Bussmann 170M |
| Amperage Rating | 250 A |
| Rated Voltage AC | 690 V |
| Interrupt Rating | 200 kA |
| Breaking Capacity | 200 kA |
| Fuse Class | Class aR |
| Construction | DIN 43620 DIN 1 format with knife blade contacts |
| Fuse Indicator | Dual Indicator (Type D) |
| Standard | IEC 60269-4 |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | IEC Rated |
| Application | Semiconductor protection, DC common bus, DC drives, power converters, rectifiers, VFDs, soft starters, thyristor stacks |
Applications & Selection Guide
The 170M3816D is the correct selection for engineers requiring semiconductor-grade short-circuit protection in AC-fed converter circuits operating at up to 690 V. Its Class aR characteristic delivers the sub-cycle current limiting action needed to protect thyristors, diodes, and IGBT modules that cannot withstand the let-through energy tolerated by general-purpose fuses. Typical installations include three-phase DC drives, variable frequency drives (VFDs), soft starters, rectifier bridges, and thyristor stacks where semiconductor junction protection is the primary design requirement.
In Indian industrial environments — including Coimbatore’s textile machinery sector, automotive component manufacturing, steel rolling mills, and large-scale HVAC plants — power converters and DC bus systems are routinely exposed to transient overloads and short-circuit events. The 170M3816D’s 200 kA breaking capacity and DIN 1 knife blade format make it a trusted fit for OEM panel builders and MRO replacement scenarios alike, where space-efficient, high-performance fuse protection is non-negotiable.
When specifying this fuse, confirm that your fuse holder or bus bar system is rated for DIN 43620 DIN 1 format knife blade contacts and that the continuous operating current does not exceed the fuse’s 250 A rating after applying any de-rating factors for elevated ambient temperature or enclosure type. Consult Shansen Enterprises for application-specific guidance and coordinated fuse-holder selection.
