Description

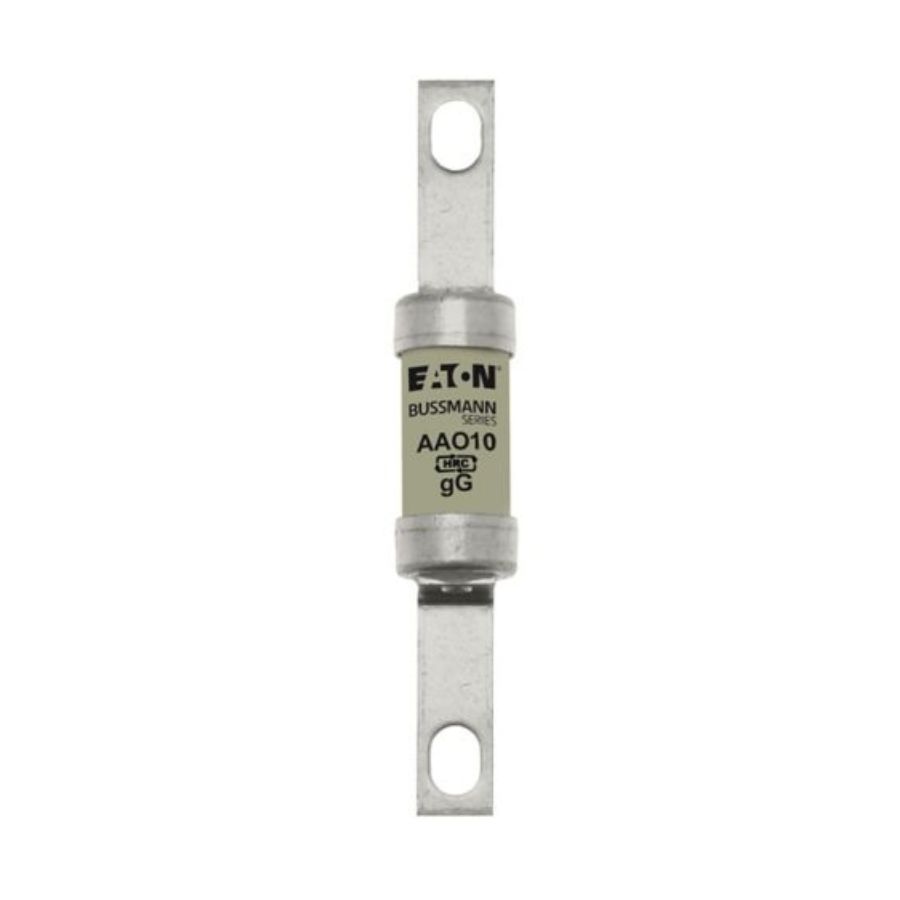

The Eaton Bussmann AAO10 is a 10A, 550V AC BS88/A2 fuse link, one size larger than the A1 (NITD) body at 14mm x 85mm with a 73mm fixing centre. Built to IEC 60269-2 and BS88, it delivers Class gG/gL protection with an 80kA breaking capacity, suited to feeders and panels using A2-size bolted fuse holders.
Key Features
- 10A rated current, 550V AC, Class gG/gL (general purpose, full-range breaking)
- 80kA breaking capacity at 550V AC for reliable fault clearance
- BS88/A2 size, 14mm x 85mm body, 73mm fixing centre, offset bolted tags
- Certified to IEC 60269-2 and BS88, CE marked and RoHS compliant
- Compatible with CM32F Camaster range and RS32 Red Spot range fuse holders
Where It Fits
Industrial distribution boards and feeder circuits using BS88/A2-size bolted fuse holders, where the higher fixing-centre size matches larger panel fuse bases.
