Description

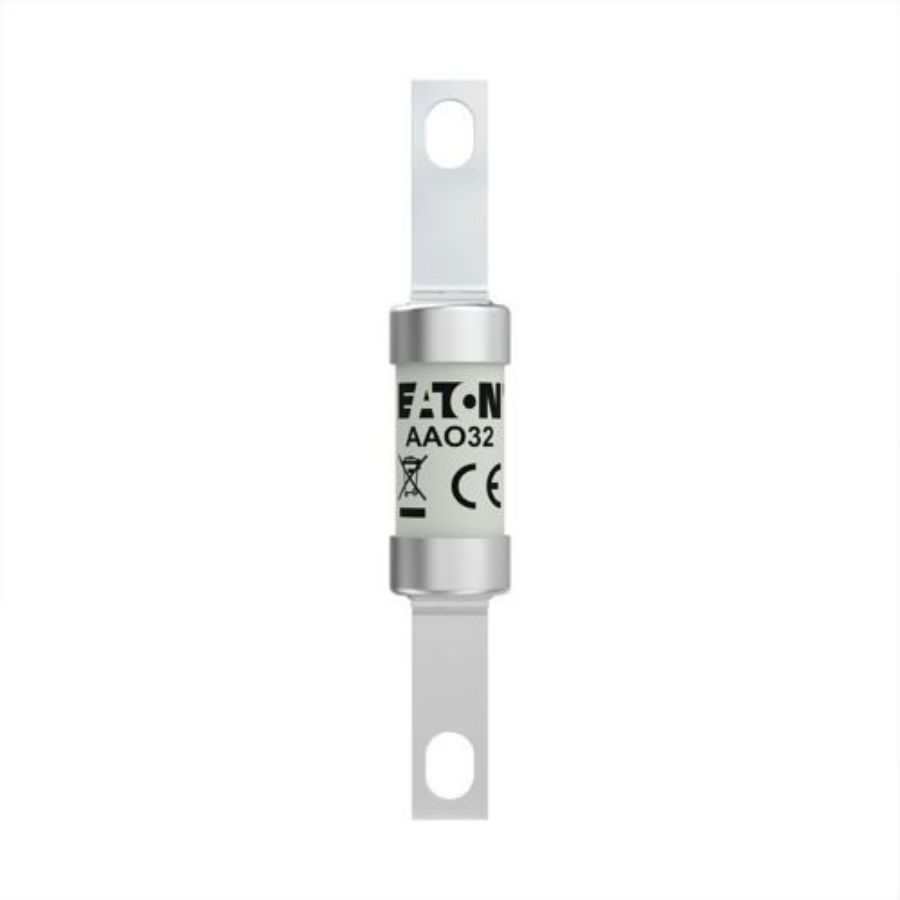

The Eaton Bussmann AAO32 is a 32A, 550V AC BS88/A2 fuse link, sized one step larger than the A1 (NITD) body at 14mm x 85mm with a 73mm fixing centre. Built to IEC 60269-2 and BS88, it delivers Class gG/gL protection with an 80kA breaking capacity for feeders and panels using A2-size bolted fuse holders.
Key Features
- 32A rated current, 550V AC, Class gG/gL (general purpose, full-range breaking)
- 80kA breaking capacity at 550V AC for reliable fault clearance
- BS88/A2 size, 14mm x 85mm body, 73mm fixing centre, offset bolted tags
- Certified to IEC 60269-2 and BS88, CE marked and RoHS compliant
- Compatible with CM32F Camaster range and RS32 Red Spot range fuse holders
Where It Fits
Industrial distribution boards and feeder circuits at the higher end of the A2 current range, using BS88/A2-size bolted fuse holders.
