Description

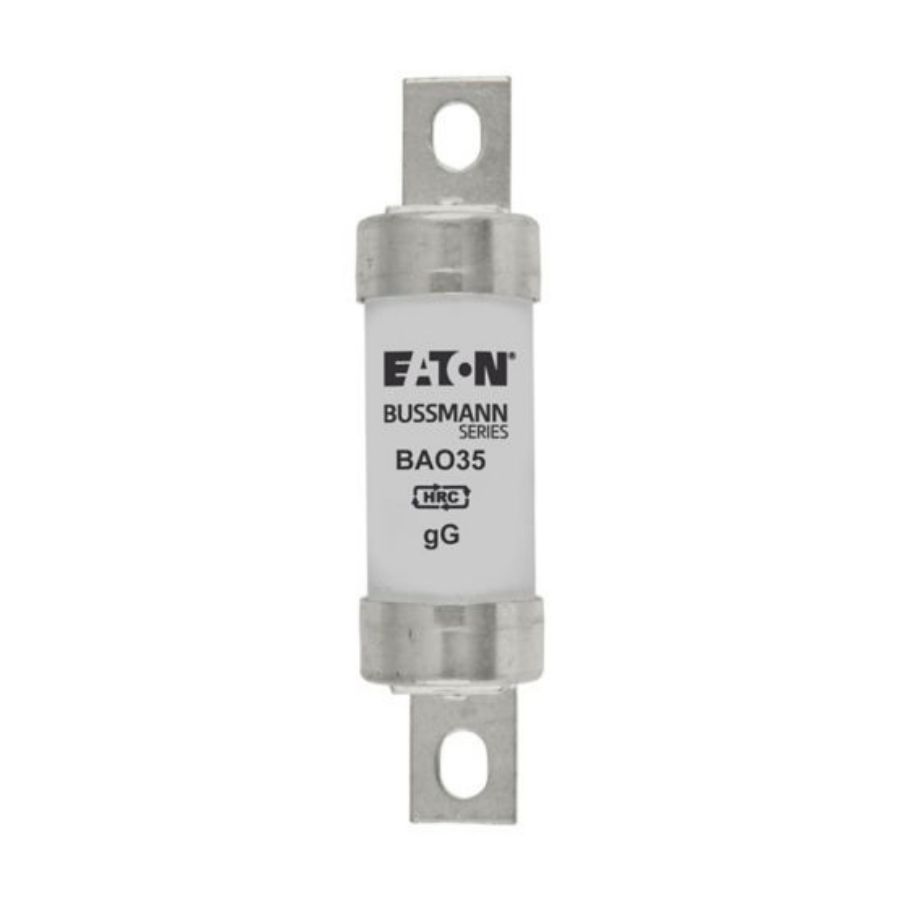

The Eaton Bussmann BAO35 steps up to the BS88/A3 body size, built for industrial feeders that outgrow the A1 and A2 ranges. At 35A, 500V AC, it carries an 80kA breaking capacity in Class gG/gL, certified to IEC 60269-2 and BS88, with M5 mounting and a 74mm fixing centre.
Key Features
- 35A rated current, 500V AC, Class gG/gL general-purpose protection
- 80kA breaking capacity for dependable fault clearance
- BS88/A3 size, 21mm x 87mm body, 74mm fixing centre, M5 mounting, offset bolted tags
- Certified to IEC 60269-2 and BS88, CE marked and RoHS compliant
- Fuse system E per IEC 60269 classification
Where It Fits
Industrial distribution panels and feeder circuits using BS88/A3-size bolted fuse holders, at current ratings above the A1/A2 range.
