Description

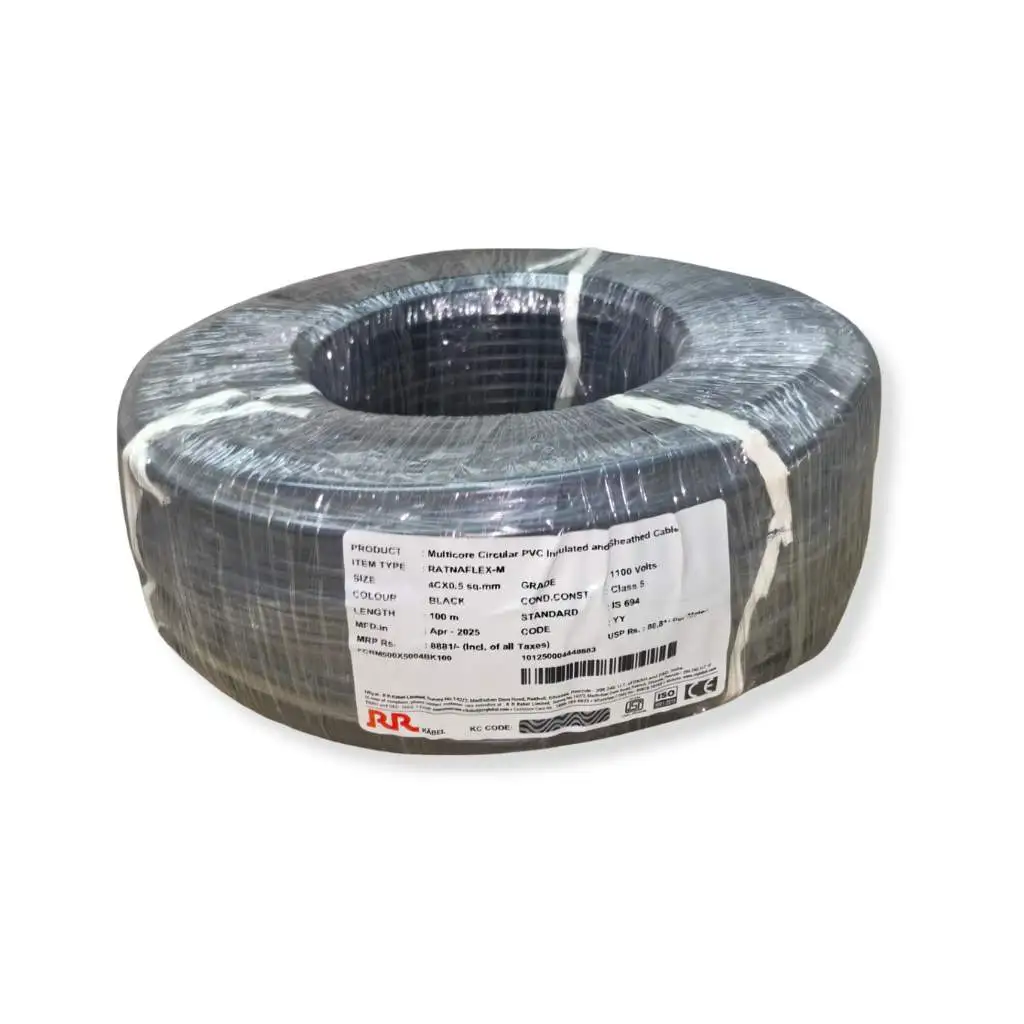

The RR Kabel Ratnaflex-M 4Cx0.5 sq mm multicore circular cable is engineered for reliable performance in demanding industrial and commercial electrical installations. Constructed with four cores of 0.5 sq mm Class 5 flexible annealed copper conductors, this cable offers excellent flexibility and durability for fixed and semi-flexible installations.
Each conductor is insulated with high-grade PVC compound, and the entire assembly is protected by a robust black PVC outer sheath that provides mechanical protection, moisture resistance, and UV stability. The cable is manufactured to IS 694 standards and rated for 1100V operation, making it suitable for control circuits, instrumentation wiring, and low-voltage power distribution in industrial environments.
RR Kabel’s Ratnaflex-M series is known for consistent quality, compliance with international standards (ISO, CE), and reliable performance across temperature ranges and installation conditions.
Key Features
- Multicore Construction: 4 cores × 0.5 sq mm for versatile wiring applications
- Class 5 Flexible Conductors: Annealed copper for superior flexibility and ease of installation
- 1100V Rated: Suitable for medium-voltage control and instrumentation circuits
- IS 694 Compliant: Meets Indian Standards for PVC insulated cables
- PVC Insulation & Sheath: Flame-retardant, moisture-resistant, and durable
- 100m Coil: Convenient length for industrial and commercial projects
- ISO & CE Certified: Quality assurance from a trusted manufacturer
- Black Outer Sheath: Professional appearance and UV protection
Technical Specifications
|
Specification |
Value |
|---|---|
|
Brand |
RR Kabel |
|
Series |
Ratnaflex-M |
|
Number of Cores |
4 |
|
Conductor Size |
0.5 sq mm |
|
Conductor Class |
Class 5 (Flexible) |
|
Conductor Material |
Annealed Copper |
|
Insulation Material |
PVC |
|
Sheath Material |
PVC |
|
Voltage Rating |
1100V |
|
Standard |
IS 694 |
|
Color |
Black |
|
Length |
100 metres |
|
Certifications |
ISO, CE |
Applications & Selection Guide
The RR Kabel Ratnaflex-M 4Cx0.5 sq mm cable is designed for a wide range of industrial, commercial, and residential applications where flexible multicore wiring is required:
Industrial Control Panels: Ideal for wiring control circuits, relay panels, PLC systems, and automation equipment where multiple signal or control lines need to be routed together.
Instrumentation & Sensors: Commonly used for connecting sensors, transmitters, actuators, and instrumentation devices in process industries, manufacturing plants, and testing facilities.
Power Distribution: Suitable for low-current power distribution in switchboards, distribution panels, and sub-distribution systems.
Machine Wiring: Perfect for internal wiring of machinery, conveyors, packaging equipment, and industrial tools where flexibility and durability are essential.
Building Services: Used in HVAC control systems, lighting control circuits, fire alarm systems, and building automation installations.
Selection Notes: When selecting multicore cables, consider the number of cores required for your application, the current-carrying capacity per core, and the installation environment. The 0.5 sq mm conductor size is suitable for control and signal applications with moderate current requirements. For higher current loads, consider larger conductor sizes from the Ratnaflex-M range.
Why Buy From Shansen Enterprises?
- Eaton Authorized Channel Partner – Trusted supplier of genuine electrical products
- 100% Genuine Products – Factory-sealed RR Kabel cables with manufacturer warranty
- Pan-India Delivery – Fast and reliable shipping from Coimbatore to all locations across India
- Technical Support – Expert guidance on cable selection, sizing, and installation
- Competitive Pricing – Best rates for bulk orders and project requirements
- Quality Assurance – All products tested and certified to Indian and international standards
Compatible Products & Accessories
- RR Kabel Ratnaflex-M cables in other core configurations (2C, 3C, 5C, 7C)
- RR Kabel Ratnaflex-M cables in larger conductor sizes (0.75 sq mm, 1.0 sq mm, 1.5 sq mm)
- Cable glands and connectors for multicore cables
- Cable ties, clamps, and support accessories
- Industrial terminal blocks and distribution boxes
- Cable markers and identification labels
Frequently Asked Questions
Q1: What is the difference between Class 5 and Class 2 conductors?
Class 5 conductors are more flexible than Class 2, with finer stranding that allows easier bending and routing in tight spaces. Class 5 is preferred for applications requiring frequent movement or complex cable routing.
Q2: Can this cable be used outdoors?
Yes, the PVC sheath provides UV resistance and moisture protection, making it suitable for outdoor installations. However, for prolonged direct sunlight exposure, consider additional conduit protection or UV-stabilized cable variants.
Q3: What is the maximum current rating per core?
For 0.5 sq mm conductors, the typical current-carrying capacity is approximately 3-4 Amps per core, depending on installation conditions, ambient temperature, and grouping factors. Refer to IS 694 or consult our technical team for specific derating calculations.
Q4: Is this cable flame-retardant?
Yes, the PVC insulation and sheath are formulated to be flame-retardant, meeting IS 694 requirements for fire safety in electrical installations.
Q5: Can I get custom lengths or bulk orders?
Yes, Shansen Enterprises can arrange custom lengths and bulk quantities for project requirements. Contact us with your specifications for a customized quote.
Q6: What is the warranty on RR Kabel products?
RR Kabel products come with a manufacturer’s warranty against defects in materials and workmanship. Warranty terms vary by product; contact us for specific warranty details.
