Description

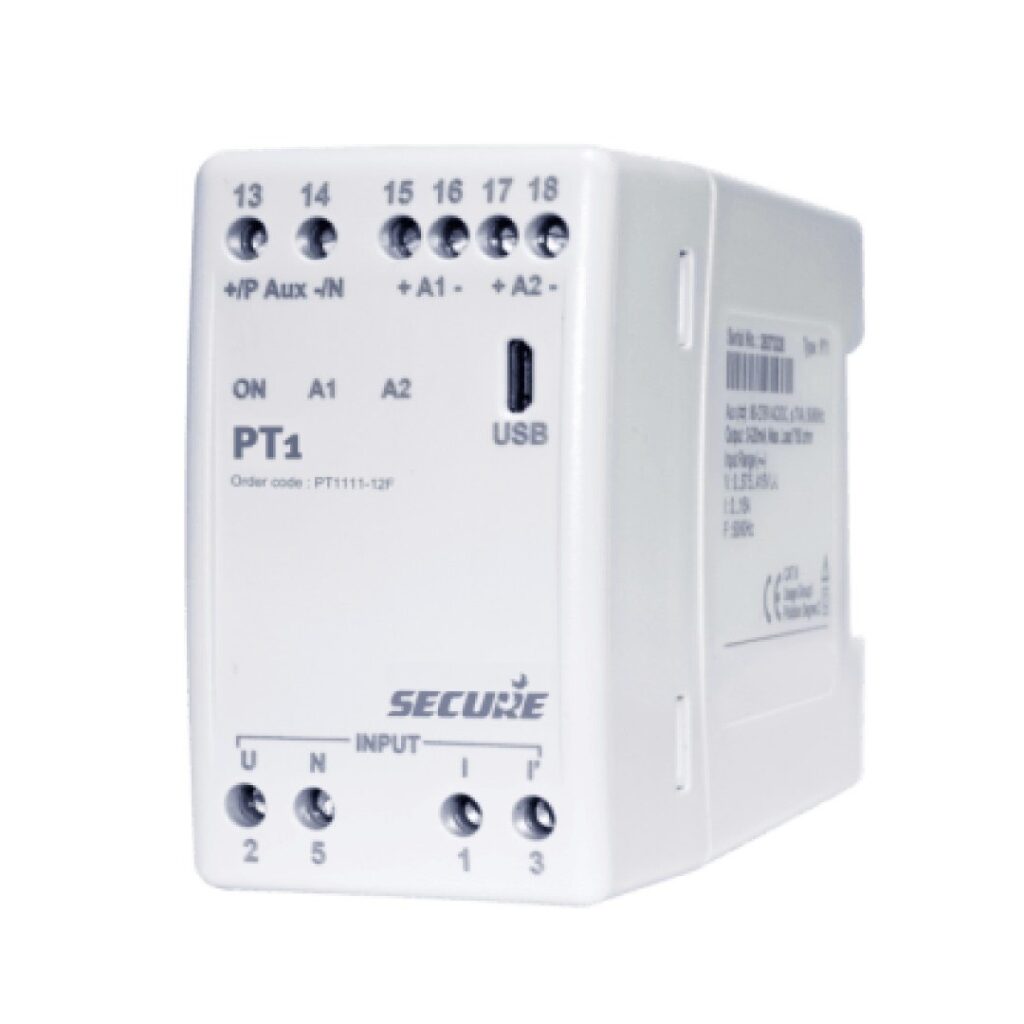

When a panel needs just one electrical parameter converted into a clean 4-20mA or voltage signal for a PLC or SCADA input, the Secure PT1 is built for exactly that job. It measures a single function — voltage, current, frequency, or DC input — with true-RMS accuracy, and its inputs and outputs can be configured on site rather than requiring a factory-specified variant for every application.
Key Features
- True-RMS measurement for accurate readings under distorted or non-linear loads
- Site-configurable input range and output curve, no need to pre-order a fixed variant
- Two load-independent, galvanically-isolated analogue outputs
- AC/DC voltage input 57.7V to 415V nominal, AC current 1A to 5A nominal
- Fast response time suited to real-time monitoring and control loops
- Diagnostic LEDs for quick on-site status checks
- Compact footprint for space-constrained panels
Where It Fits
Supply utility metering points, industrial process panels, and any installation needing a single reliable analogue signal for indication, monitoring or control.
Available with Shansen Enterprises, Coimbatore — Authorized Channel Partner for SECURE Meters, ABB, Eaton Bussmann, Lisha & Leon Switch Products and Indo Tech Transformers, delivering genuine products pan-India.
