Description
Overview

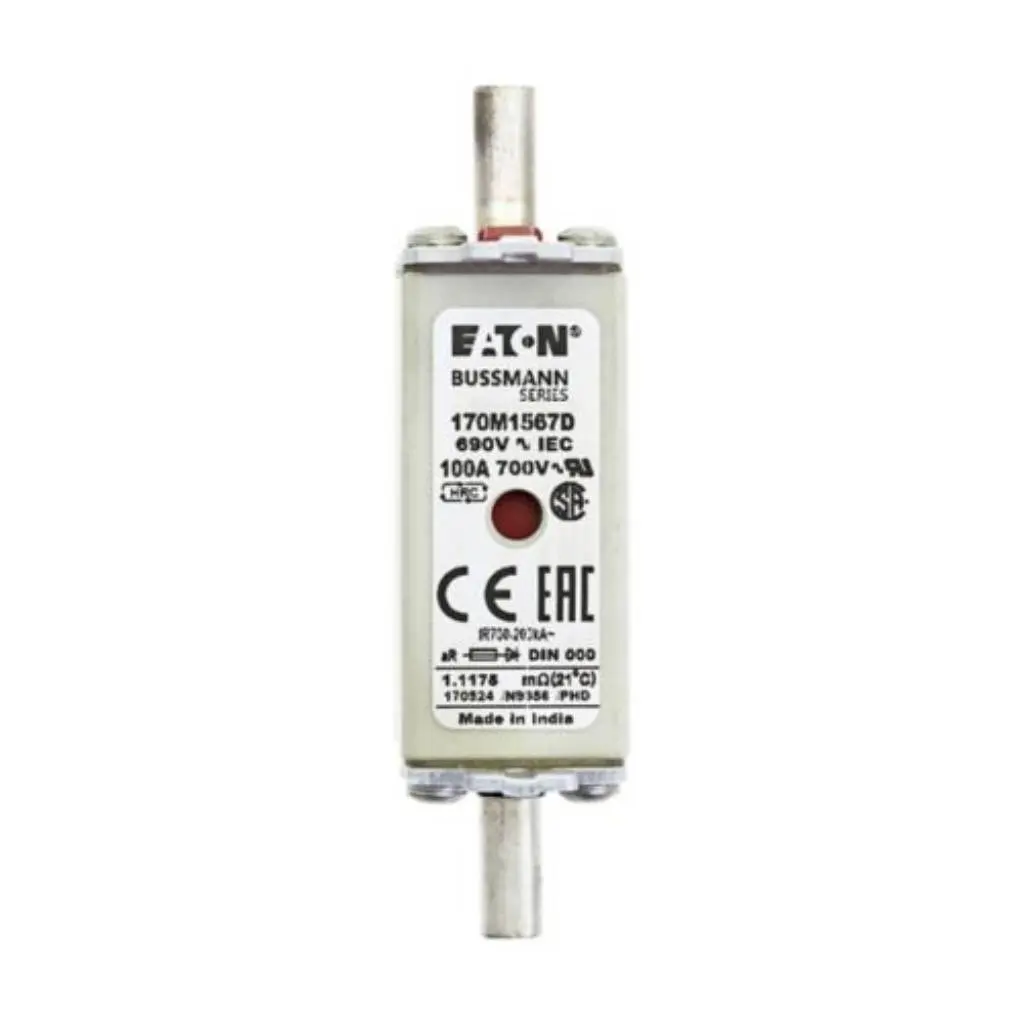

The Eaton Bussmann 170M1567D is a high speed square body semiconductor protection fuse rated at 100 A and 690 V AC, designed to protect thyristors, diodes, IGBTs, and other semiconductor components in power electronics systems. Part of the proven Bussmann 170M Series, it conforms to DIN 43620 DIN 000 format with knife blade contacts, making it a direct-fit solution for standard semiconductor fuse holders used across industrial drive and converter panels in India. Its dual fuse indicator (Type D) provides clear visual and auxiliary signalling of a blown fuse, minimising downtime in critical installations.
Key Features
- 100 A Current Rating — precisely rated for mid-range semiconductor protection without over-sizing the fuse circuit
- 690 V AC Voltage Rating — suitable for 400 V and 690 V industrial power systems widely used across Indian manufacturing plants
- 200 kA Interrupt Rating — exceptional breaking capacity ensures safe clearance of high prospective fault currents in industrial installations
- Class aR Fuse Classification — current-limiting fast-acting response specifically designed to protect semiconductor devices before damage threshold is reached
- DIN 43620 DIN 000 Format with Knife Blade Contacts — standardised square body construction for compatibility with widely available DIN 000 fuse holders and busbars
- Dual Fuse Indicator (Type D) — provides both visual indication and microswitch/auxiliary contact output for remote monitoring and panel annunciation
- IEC 60269-4 Compliant — internationally recognised standard for semiconductor fuses, ensuring verified performance characteristics
- CE Marked and RoHS Compliant — meets European safety directives and restricts hazardous substances, supporting export-grade panel builds
- Bussmann 170M Series — a globally trusted platform used by drive manufacturers, OEMs, and panel builders for decades
Technical Specifications
| Specification | Value |
|---|---|
| Catalog Number | 170M1567D |
| Series | Bussmann 170M |
| Amperage Rating | 100 A |
| Voltage Rating AC | 690 V |
| Interrupt Rating | 200 kA |
| Breaking Capacity | 200 kA |
| Fuse Class | Class aR |
| Construction / Format | DIN 43620 DIN 000, Knife Blade Contacts |
| Fuse Indicator | Dual Indicator (Type D) |
| Standard | IEC 60269-4 |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | IEC Rated |
| Application | Semiconductor protection, DC common bus, DC drives, power converters, rectifiers, VFDs, soft starters, thyristor stacks |
Applications & Selection Guide
The 170M1567D is the correct choice when you need Class aR semiconductor protection at 100 A in a 690 V AC system. Class aR fuses are designed exclusively for semiconductor protection — they operate faster than general-purpose Class gG fuses, clearing fault current before the i²t energy can damage expensive thyristors, diodes, or IGBTs. This makes them mandatory in converter and drive designs where semiconductor replacement costs and downtime far exceed the cost of the fuse itself.
Typical applications in India include variable frequency drives (VFDs) used in pumps, fans, and compressors across water treatment, cement, and steel plants; DC common bus systems and rectifier bridges in heavy industry; soft starters in motor control centres (MCCs); and thyristor stacks in resistance welding, electroplating, and induction heating equipment. The DIN 000 knife blade format is widely supported by panel builders across Coimbatore, Chennai, Pune, and other manufacturing hubs.
When selecting this fuse, verify that your fuse holder or busbar system accepts DIN 43620 DIN 000 knife blade contacts and that the I²t let-through value of the 170M1567D is below the I²t withstand rating of the semiconductor device being protected. Consult the Eaton Bussmann 170M Series datasheet or contact Shansen Enterprises for application engineering support.
Why Buy from Shansen Enterprises?
- Authorized Eaton Channel Partner in Coimbatore — genuine products with full manufacturer traceability
- 100% genuine Eaton Bussmann fuses supplied with warranty and documentation
- Pan-India delivery to all major industrial cities and tier-2 locations
- WhatsApp technical support for product selection, cross-reference, and application queries
- Bulk pricing and project discounts available for panel builders, OEMs, and EPC contractors
Compatible Products & Accessories
- Eaton Bussmann DIN 000 Knife Blade Fuse Holders (square body, compatible with 170M Series)
- Eaton Bussmann 170M Series fuses in adjacent current ratings (63 A, 80 A, 125 A, 160 A)
- Auxiliary microswitch contact blocks for Type D indicator output wiring
- DIN 43620 busbar-mounted fuse bases for 170M DIN 000 format
- Eaton Bussmann semiconductor fuse selection guide and I²t coordination charts
Frequently Asked Questions
What does Class aR mean and why is it required for semiconductor protection?
Class aR (current-limiting, restricted range) fuses are specifically designed to protect semiconductor devices. Unlike general-purpose Class gG fuses that operate across a wide overload range, Class aR fuses are optimised to clear faults extremely fast — limiting the let-through energy (I²t) to a value that the semiconductor can survive. Using a Class gG fuse in a semiconductor circuit will typically result in device destruction before the fuse operates, making Class aR the correct and necessary choice for drives, converters, and thyristor circuits.
What is the DIN 43620 DIN 000 format and which fuse holders accept the 170M1567D?
DIN 43620 is the German standard defining the physical dimensions of square body semiconductor fuses, with DIN 000 being a specific size class within that standard. The 170M1567D uses knife blade contacts and a square body housing that conform to this format. Compatible fuse holders include Eaton Bussmann DIN 000 series holders as well as third-party DIN 43620 DIN 000 rated holders from other manufacturers. Always confirm current rating and voltage compatibility of the holder before installation.
What does the Dual Indicator (Type D) on the 170M1567D provide?
The Type D dual indicator provides two forms of fuse-blown notification. First, a visual pop-up indicator gives a clear local signal that the fuse has operated — essential for quick identification during panel inspection. Second, the Type D indicator includes a microswitch or auxiliary contact output that can be wired into a control circuit or PLC input, enabling remote fault annunciation, drive shutdown, or alarm triggering without the need for a technician to open the panel. This significantly reduces fault diagnosis time in automated industrial systems.
Can the 170M1567D be used in DC applications such as DC common bus systems?
Yes. The Eaton Bussmann 170M Series is widely used in DC common bus architectures, DC drive systems, and rectifier bridges. However, DC voltage ratings differ from AC ratings, and you must verify the specific DC voltage rating for the 170M1567D from the official Eaton datasheet before applying it in a DC circuit. Contact Shansen Enterprises or refer to the Eaton Bussmann 170M Series technical documentation for DC application guidance.
Is the 170M1567D a direct replacement for other 100 A DIN 000 semiconductor fuses?
The 170M1567D may be a direct physical replacement for other DIN 43620 DIN 000 format 100 A semiconductor fuses, but electrical compatibility must be verified. Key parameters to cross-check include: AC voltage rating, I²t let-through value, fuse class (aR), and indicator type. Direct substitution without verifying I²t and time-current characteristics can lead to inadequate semiconductor protection. Shansen Enterprises can assist with cross-reference validation against other brands including ABB, Ferraz Shawmut, and Mersen.
