Description
Overview

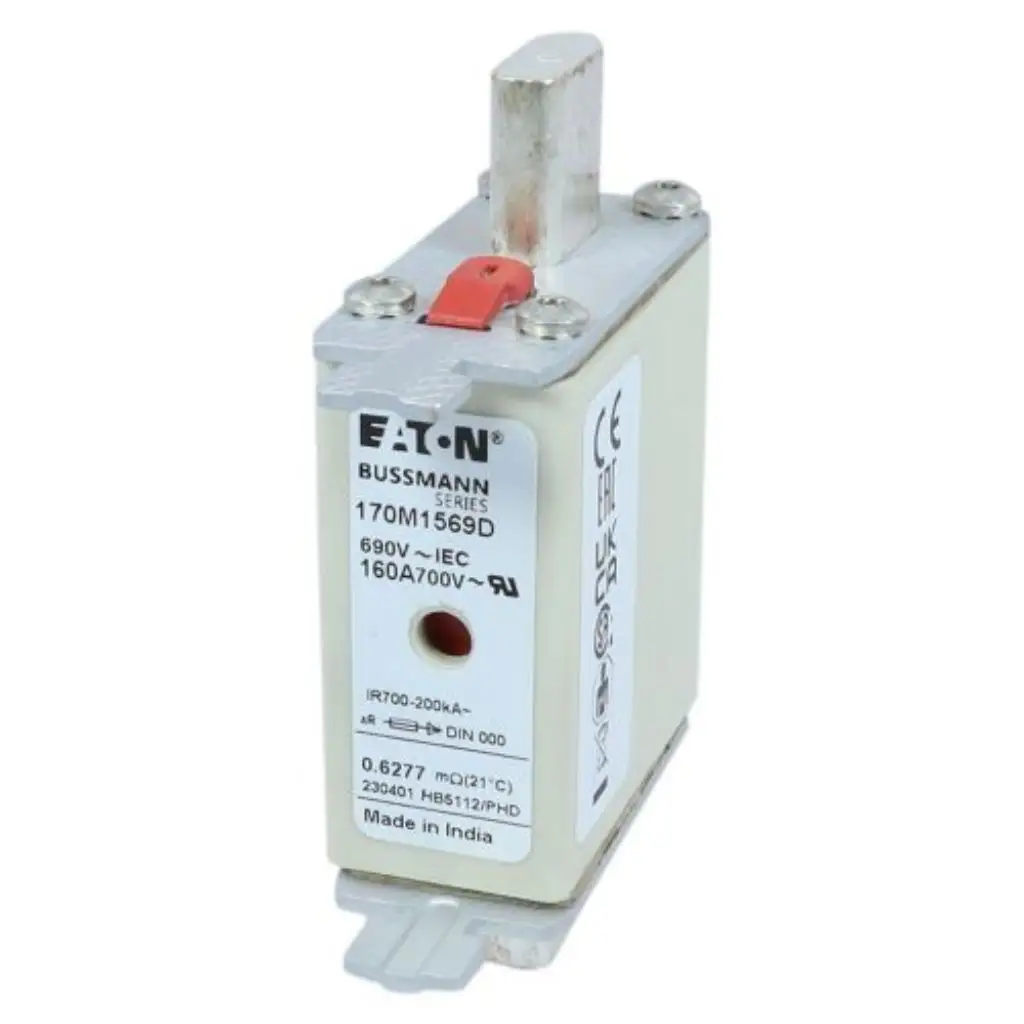

The Eaton Bussmann 170M1569D belongs to the proven 170M Series of high speed square body semiconductor fuses, purpose-built to protect sensitive power electronic components from destructive fault currents. Rated at 160A and 690V AC with a 200 kA interrupt rating, this fuse conforms to DIN 43620 DIN 000 format with knife blade contacts, making it directly compatible with standard DIN fuse bases used widely in industrial drive and converter panels. Its dual fuse indicator (Type D) allows both local visual inspection and remote trip signalling, supporting fast maintenance response in production environments.
Key Features
- 160A Current Rating — precise amperage sizing for semiconductor protection in medium-power drive and converter circuits
- 690V AC Rated Voltage — suitable for standard European and Indian three-phase 690V industrial distribution systems
- 200 kA Breaking Capacity — high interrupt rating ensures safe operation even under severe upstream fault conditions
- Class aR Classification — fast-acting current-limiting performance specifically designed to protect semiconductor devices before they sustain damage
- DIN 43620 DIN 000 Format with Knife Blade Contacts — industry-standard form factor for straightforward replacement and compatibility with common fuse holders and busbars
- Dual Fuse Indicator (Type D) — provides both visible local indication and an electrical output for remote monitoring or auxiliary tripping circuits
- IEC 60269-4 Compliant — meets the international standard for high speed fuses used in semiconductor protection
- CE Marked and RoHS Compliant — meets European regulatory requirements for safety and restricted hazardous substances
- Broad Application Coverage — suited for DC common bus systems, DC drives, power converters, rectifiers, VFDs, soft starters, and thyristor stacks
Technical Specifications
| Specification | Value |
|---|---|
| Catalog Number | 170M1569D |
| Series | Bussmann 170M |
| Amperage Rating | 160 A |
| Rated Voltage AC | 690 V |
| Interrupt Rating | 200 kA |
| Breaking Capacity | 200 kA |
| Fuse Class | Class aR |
| Construction | DIN 43620 DIN 000 format with knife blade contacts |
| Fuse Indicator | Dual Indicator (Type D) |
| Standard | IEC 60269-4 |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | IEC Rated |
| Application | Semiconductor protection, DC common bus, DC drives, power converters, rectifiers, VFDs, soft starters, thyristor stacks |
Applications & Selection Guide
The 170M1569D is the correct choice when you need dependable semiconductor protection at 160A in 690V AC industrial systems. Its Class aR rating means it is optimised specifically for semiconductor fuse duty — acting faster than general-purpose gG or gR fuses to interrupt fault current before it can destroy IGBTs, thyristors, diodes, or MOSFETs inside drives and converters. It is particularly well suited to DC common bus architectures, where multiple drives share a common DC link and a single fuse failure must be contained without cascading damage.
In India, this fuse series is widely used in industries such as steel and metals processing, paper and pulp, cement, water treatment, textile mills, and automotive manufacturing — wherever variable frequency drives, soft starters, or large rectifier banks are installed. The DIN 000 knife blade format ensures it drops into existing panel designs without modification, reducing downtime during maintenance or replacement.
When selecting this fuse, verify that your fuse holder or fuse base is rated for DIN 43620 DIN 000 format and knife blade contacts. Ensure the continuous load current does not exceed the 160A rating at the ambient temperature of your enclosure, and confirm that your system’s prospective short circuit current does not exceed 200 kA at the point of installation. If your application operates at a lower voltage or requires a different current rating, contact Shansen Enterprises for guidance on alternative 170M Series catalog numbers.
Why Buy from Shansen Enterprises?
- Authorized Eaton Channel Partner in Coimbatore — supplying genuine Eaton Bussmann products across Tamil Nadu and India
- 100% genuine products with manufacturer warranty — no grey market or counterfeit risk
- Pan-India delivery — reliable logistics to your site, panel shop, or warehouse anywhere in India
- WhatsApp technical support — get fast answers on product selection, cross-references, and compatibility
- Bulk pricing for panel builders and OEMs — competitive rates for project quantities and regular procurement
Compatible Products & Accessories
- DIN 43620 DIN 000 fuse holders and bases compatible with knife blade contact fuses
- Eaton Bussmann 170M Series fuses in other amperage ratings for DC bus and drive protection
- Remote fuse monitoring relay modules for Type D indicator output
- DIN rail and busbar mounted semiconductor fuse carriers for 690V panels
- Eaton drive protection fuse kits for VFD and soft starter panels
- Copper busbars and insulating barriers for DIN 000 fuse assemblies
Frequently Asked Questions
What does Class aR mean for the Eaton Bussmann 170M1569D?
Class aR designates a high speed current-limiting fuse specifically rated for semiconductor protection. Unlike general-purpose gG fuses, a Class aR fuse is designed to clear fault currents extremely rapidly — fast enough to prevent the I²t energy from destroying semiconductor junctions in devices such as IGBTs, thyristors, diodes, and MOSFETs. The 170M1569D must be used as part of a coordinated protection scheme for semiconductor equipment; it is not a substitute for branch circuit or motor protection fuses.
What is the difference between the Type D dual indicator and a standard single indicator on the 170M Series?
The Type D dual indicator on the 170M1569D provides two functions simultaneously: a visible local indicator that pops out or changes state when the fuse operates, allowing maintenance technicians to identify a blown fuse at a glance, and an electrical contact output that can be wired to a PLC, relay, or alarm circuit for remote fault signalling. A standard single indicator provides only the local visual signal. The Type D option is preferred in automated production lines and critical drive systems where remote trip indication or alarm annunciation is required.
Is the 170M1569D suitable for DC applications such as DC drives and DC common bus systems?
Yes. The Eaton Bussmann 170M Series is widely applied in DC common bus and DC drive protection. While the catalog specifies a 690V AC rating, Eaton publishes DC voltage ratings for the 170M Series separately — you should consult the Eaton Bussmann 170M Series datasheet or contact Shansen Enterprises to confirm the applicable DC voltage rating for your specific DC bus voltage before installation. DC applications typically have different voltage derating requirements compared to AC, and the correct catalog number must be verified against the DC system voltage.
Which fuse holder or fuse base is compatible with the 170M1569D?
The 170M1569D is built to DIN 43620 DIN 000 format with knife blade contacts. It is compatible with fuse holders, fuse bases, and busbars designed to accept DIN 000 knife blade semiconductor fuses. Common compatible accessories include bolted busbar-type fuse carriers and enclosed fuse holders rated for 690V AC service. Always verify that the fuse holder is rated for the full 200 kA breaking capacity of the system and is suitable for Class aR high speed fuse applications. Contact Shansen Enterprises for specific holder recommendations.
What industries in India commonly use the Eaton Bussmann 170M1569D?
In India, the 170M1569D and similar 170M Series semiconductor fuses are regularly specified in steel plants, aluminium smelters, paper mills, textile manufacturing, cement production, water and wastewater treatment, automotive assembly lines, and oil and gas installations — wherever variable frequency drives, DC drives, soft starters, large rectifiers, or thyristor-controlled equipment is installed. Panel builders in Coimbatore, Chennai, Pune, Ahmedabad, and Hyderabad use these fuses in drive panels, converter cabinets, and power electronics assemblies supplied to process industries across India.
How do I order the Eaton Bussmann 170M1569D from Shansen Enterprises?
You can request a quote directly from Shansen Enterprises by clicking the WhatsApp button on this page or by sending an email with the catalog number 170M1569D, your required quantity, and your delivery location. Our team will respond promptly with price, availability, and lead time. Shansen Enterprises supplies genuine Eaton Bussmann products across India, including Tamil Nadu, Maharashtra, Gujarat, Karnataka, Andhra Pradesh, and Telangana. Bulk and project orders are welcome, and we offer competitive pricing for panel builders and OEM customers.
