Description

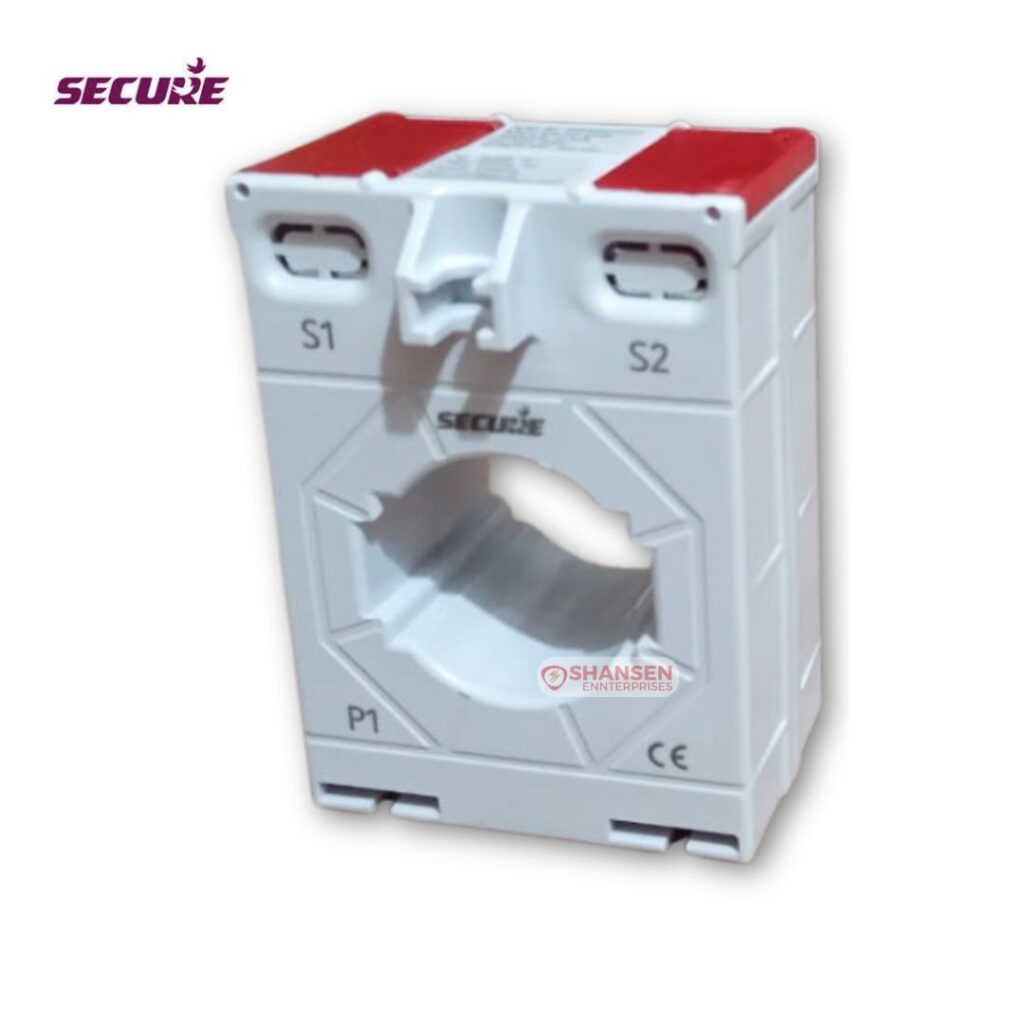

Secure Meters MCT 50/30 (200/5 A, 2.5 VA, Class 1.0, FS 5) — solid-core CT for precision monitoring. Looking for a reliable and compact current transformer for your electrical panel setups? The Secure Meters MCT 50/30 is a solid-core current transformer built to modern IEC standards, ideal for commercial and industrial energy monitoring applications. Made in India by Secure Meters Ltd and designed to fit a 50×30 mm busbar, this CT ensures dependable accuracy and thermal performance in demanding conditions.
Key Features
- Primary/Secondary Current: 200 A / 5 A (Turns Ratio 40:1)
- Rated Burden: 2.5 VA, Accuracy Class 1.0
- Instrument Security Factor: FS 5
- Insulation Voltage: 3 kV AC for 1 min; Max Operating Voltage (Um) 0.72 kV
- Thermal Rating: 120{21d06cf633e1d74c16ec73ab43c3358f6d2908066060866fd407f242af8b6688} continuous, short-circuit rated 60×In for 1s
- Mounting: Busbar slot (50×30 mm), DIN-rail/flush options
- Humidity Tolerance: <95{21d06cf633e1d74c16ec73ab43c3358f6d2908066060866fd407f242af8b6688} RH (non-condensing); Ambient Temp 0°C to +50°C
- Standard Compliance: IEC 61869-2
Ideal For
- Electrical switchboards
- Energy metering panels
- HVAC systems
- Industrial automation
- Power distribution units
- Smart building panels
- Utility substations
Available with Shansen Enterprises, Coimbatore — Authorized Channel Partner for SECURE Meters, ABB, Eaton Bussmann, Lisha & Leon Switch Products and Indo Tech Transformers, delivering genuine products pan-India.
