Description

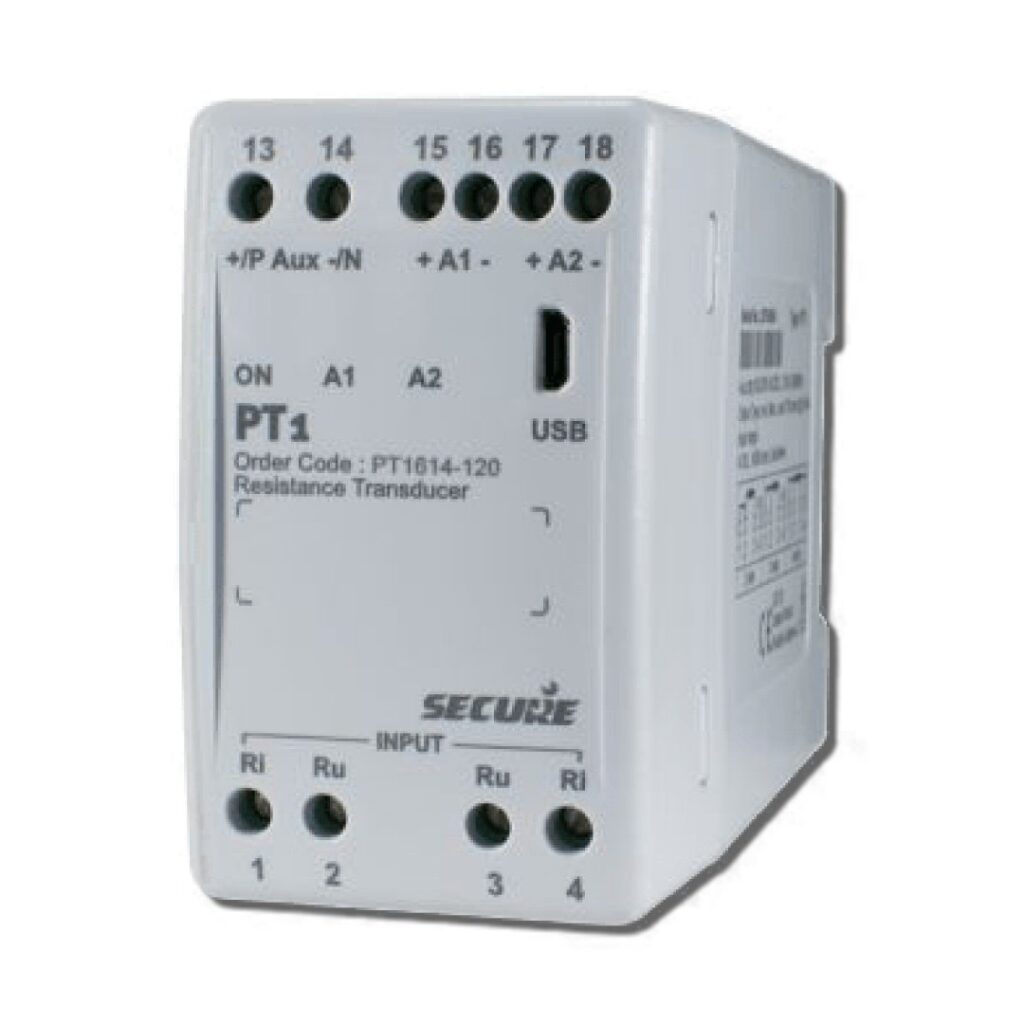

Resistance-based sensors need their own conversion path into a standard analogue signal, and that’s the specific job the Secure PT1 Resistance Transducer does. It converts a measured resistance value — anywhere from 0-100Ω up to 0-14kΩ — into a clean mA output, configurable on site for the exact range your sensor needs.
Key Features
- Resistance measuring range from 0-100Ω up to 0-14kΩ
- Two load-independent, galvanically-isolated mA outputs
- Class 0.2S accuracy or better on the analogue output
- Site-configurable resistance range and output curve
- Diagnostic LEDs for instant status feedback
- Compact footprint for easy integration into existing systems
Where It Fits
Supply utility and industrial monitoring where resistance-based sensors need to be converted to analogue signals for control systems, plus general resistance measurement in control panels.
