Description

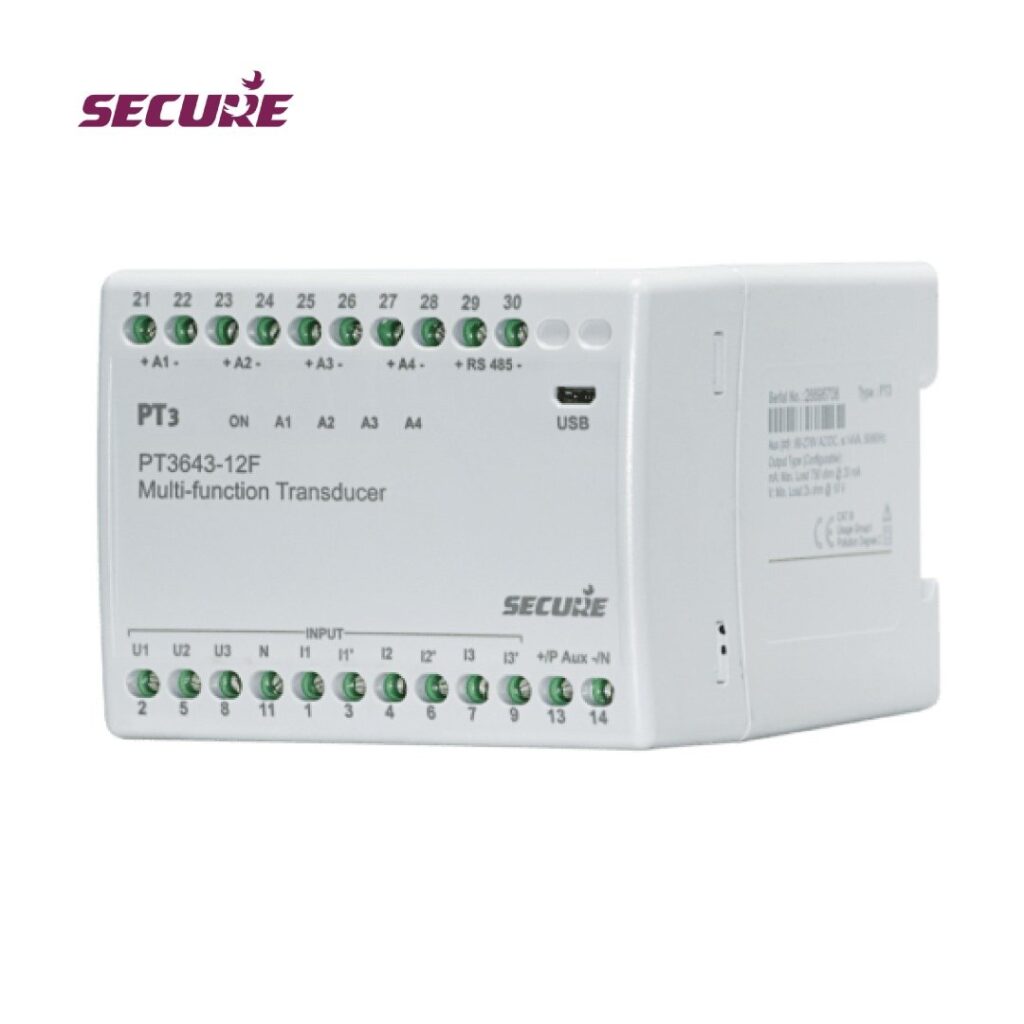

Where a panel needs several three-phase parameters — say voltage, current, power and frequency — monitored from one point, buying four separate single-function transducers wastes both space and budget. The Secure PT3 Multi-Function packs up to four load-independent analogue outputs into one compact three-phase unit, each individually configurable on site.
Key Features
- Up to four load-independent, galvanically-isolated analogue outputs from one unit
- Site-configurable input parameters, ranges, and output curves per output
- True-RMS three-phase measurement with best-in-class response time
- AC voltage input 100V to 415V L-L (3-wire) or 57.5V to 240V L-N (4-wire)
- Diagnostic LEDs for fast troubleshooting
- Compact footprint despite the multi-function design
Where It Fits
Supply utility substations, industrial three-phase panels needing several parameters monitored together, and facilities where panel space is limited.
Available with Shansen Enterprises, Coimbatore — Authorized Channel Partner for SECURE Meters, ABB, Eaton Bussmann, Lisha & Leon Switch Products and Indo Tech Transformers, delivering genuine products pan-India.
